產品簡述 (Product Profile)
水冷散熱器是一種IGBT、GTO等功率元件高效散熱器，控制功率模塊的溫度，使其在所處的工作環境條件下不超過標準及規范所規定的最高溫度，最高允許溫度的計算以有限元熱分析與元器件工作條件分析為基礎，并且與產品的可靠性要求及使用環境要求相一致。從而達到功率模塊安全、穩定可靠性運行及延長設備使用壽命。LCP is used for cooling power modules, like IGBT/GTO etc. In order to precisely control the right temperture of power modules in its operational environment, which
could lead to a good system safty, stability and service life, we depend on simulating softwares based on Finite Element Analysis methodes and laboratory prototype test in design and a good comprehending of manufacturing processes.
產品參數 (Product parameters)
常用加工工藝與分類 (Manufacturing Processes and Characteristics)
FZ450R12ME3模塊水冷板的性能 (The LCP Property Parameter For FZ450R12ME3)
適用于所有相同尺寸規格的發熱元件，即尺寸為62mm*122mm。水冷板的溫升=熱阻*散熱功率。
The LCP property parameter sheet for FZ2400R12KF4, which is adaptable for all the IGBT basesize 140*190mm. The delta T of LCP = thermal resistance * power dissipation.

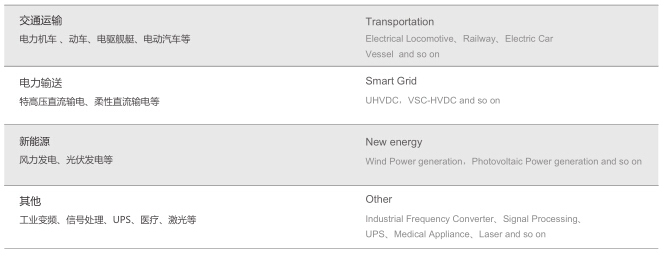

應用(Application)
仿真圖(Simulation Picture)
